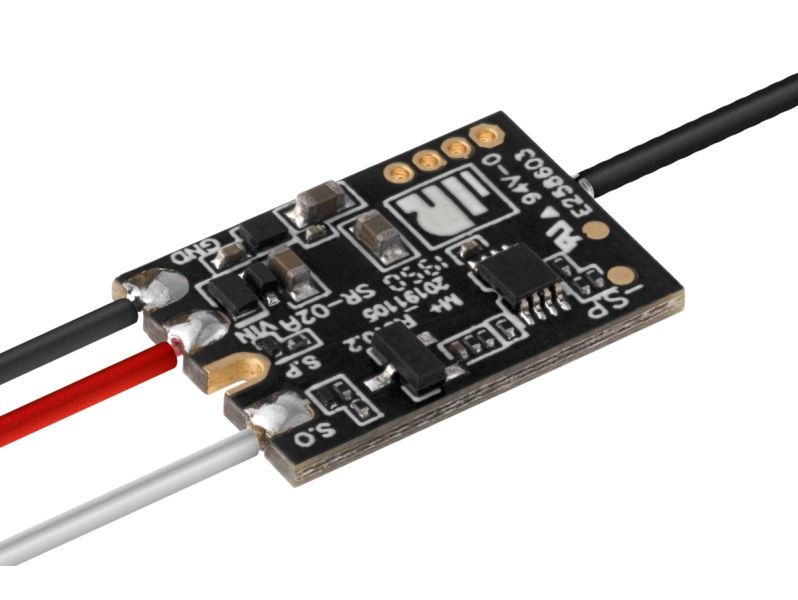

KAVAN M+ receiver with Micro JST connector

Miniature telemetry receiver for the 2.4GHz ACCESS transmission system. It features a 16 or 24-channel mode via S.BUS. Detachable antenna with IPEX4 connector. With a Micro JST connector, it is especially ideal for the KAVAN Sling MINI DLG, but can also be used for a wide range of copters. Thanks to F.BUS connectivity, you can easily and quickly pair it with various telemetry devices. Telemetry transmission works over a distance of 500–600 metres. OTA (Over the Air) technology ensures convenient wireless firmware updates.

Features:

• Miniature size and low weight
• ACCESS transmission mode with smart pairing
• S.BUS output port（with 16/24 channel mode)
• Valid Frame Rate (VFR) telemetry (S.Port or F.Port) with a range up to 600 m
• Inverted S.Port
• Wireless firmware updates (OTA)

Technical Specifications:

• Dimensions: 17×11.7×4 mm (L×W×H)
• Weight: 1 g
• Number of channels: 16/24 via S.BUS
• Operating voltage range: 3.5–10 V
• Operating current: ＜16 mA at 5 V
• Operating range: ＞1.2 km (full range, may vary according to actual ambient conditions)
• Antenna connector: IPEX4
• Compatibility: 2.4GHz ACCESS
