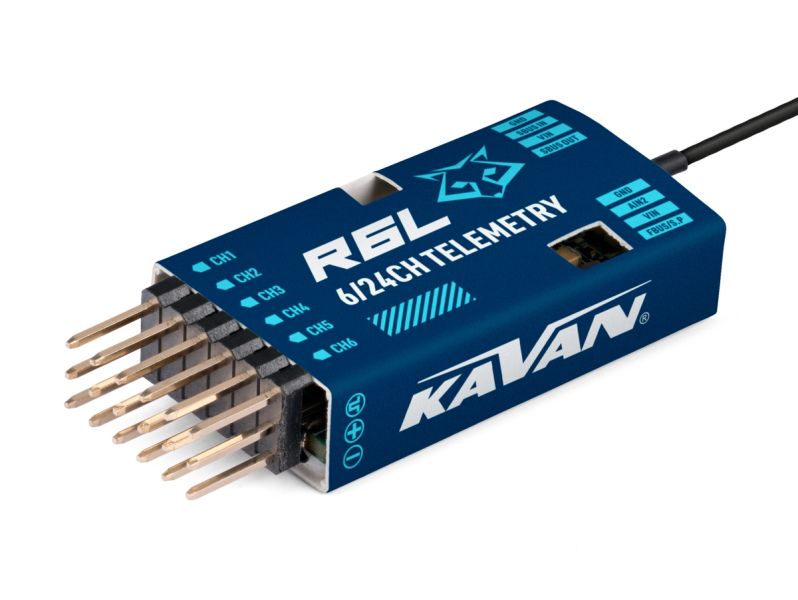

KAVAN R6L receiver

Compact 6-channel 2.4GHz telemetry receiver for ACCESS RC protocol. It features 6 high-precision PWM channels and 16 or 24-channel S.BUS modes. Antenna with the IPEX1 connector provides full signal strength throughout the range. Its low-profile design offers easy installation in models with limited internal space, while the S.BUS In/Out and S.Port/FBUS ports, together with the included connector, provide extensive functionality and compatibility with a wide range of additional systems.

It features advanced interference suppression for reliable stable signal transmission across the entire range. Smart transmission system matching speeds up pairing with wireless firmware updates. Receiver operating statuses are indicated by an LED indicator. The receiver also allows telemetry power adjustment and protocol changing.

Features:

• Increased protection against RF interference and more stable RF transmission
• ACCESS RC protocol with smart pairing
• 6 high-precision PWM channels
• S.BUS output port（with 16/24-channel mode)
• S.BUS input port (with support for redundant connection of 2 receivers)
• Full-range telemetry (S.Port or F.BUS)
• Wireless firmware updates (OTA)
• External battery/device voltage detection

Technical Specifications:

• Dimensions: 45×18.5×9 mm (L×W×H)
• Weight: 5.6 g
• Number of channels: 6 PWM channels + 16/24 channel mode via S.BUS
• Operating voltage range: 3.5–10 V
• Operating current: ＜65 mA at 5 V
• Operating range: ＞2 km (full range, may vary according to actual ambient conditions)
• External voltage measurement range via AIN2: 0-35 V (battery voltage divider ratio: 1:10)
• Antenna connector: IPEX1
• Compatibility: 2.4GHz ACCESS
